Aluminium Bi-Folding Doors

A bi-folding door opens the home to nature and lets you live without boundaries. Our folding doors are perfect for those who dream of a more open living room or an isolated conservatory. With a simple movement, you open the entire wall.

Bi-folding doors with widths up to 6 meters and heights up to 2.8 meters.
Stable and energy-efficient aluminium profiles from Schüco.
Custom-made and manufactured to individual requirements.
An impressive solution for patios, terraces, balconies, and conservatories.
Up to six door leaves can be combined for maximum transparency.
Traffic door option for practical daily use.
Maintenance-free and high burglar resistance.

Get a price

Specifications

Our aluminium bi-folding doors are manufactured to the highest standards of design, energy efficiency, sound insulation and burglar resistance. Schüco ASS 70 FD has good thermal insulation and is our most popular bi-folding door. The highly thermally insulated Schüco ASS 80 FD.HI keeps the indoor climate comfortable throughout the year. The aluminium bi-folding doors are available in a multitude of RAL colours and anodised surface finishes, and you can select different colours for the interior and exterior.

Schüco ASS 70 FD

Profile depth

70 mm

Max. width

5950 mm

Max. height

2800 mm

Thermal insulation

Uw ≥ 1,20 W/(m²K)

Air permeability

up to class 3 in accordance with EN 12207

Watertightness

up to class 8A/9A in accordance with EN 12208

Burglar resistance

PAS 24

Wind load resistance

up to class B3/C3 in accordance with EN 12210

Panels

2-6

Schüco ASS 80 FD.HI

Profile depth

80 mm

Max. width

5950 mm

Max. height

2800 mm

Thermal insulation

Uw ≥ 0,99 W/(m²K)

Air permeability

up to class 3 in accordance with EN 12207

Watertightness

up to class 8A/9A in accordance with EN 12208

Burglar resistance

PAS 24

Wind load resistance

up to class B3/C3 in accordance with EN 12210

Panels

2-6

Opening Configurations

A wide range of opening configurations for practical and easy access. The panels can be moved left, right, inwards or outwards as required. All openings are seen from the outside.

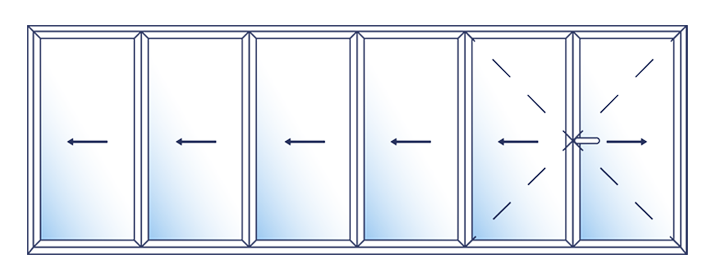

6 panels, 5 left and 1 right (reversible). With traffic door. Max width 5 950 mm.

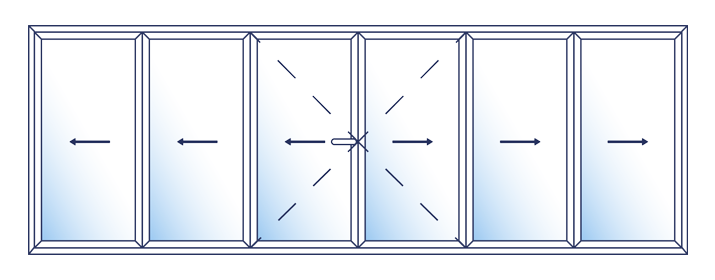

6 panels, 3 left and 3 right. With traffic door. Max width 5 950 mm.

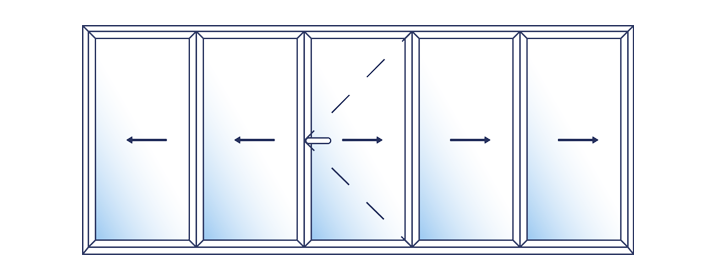

5 panels, 2 left and 3 right (reversible). With traffic door. Max width 5 950 mm.

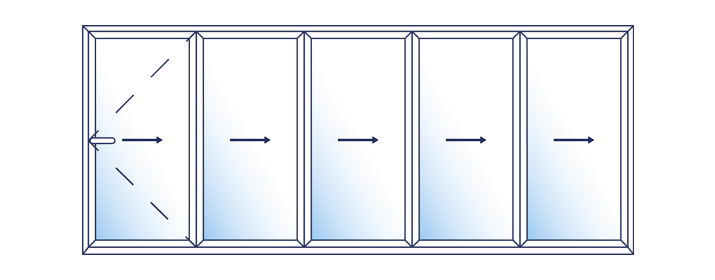

5 panels, 5 right (reversible). With traffic door. Max width 5 950 mm.

4 panels, 2 left and 2 right. Without traffic door. Max width 4 800 mm.

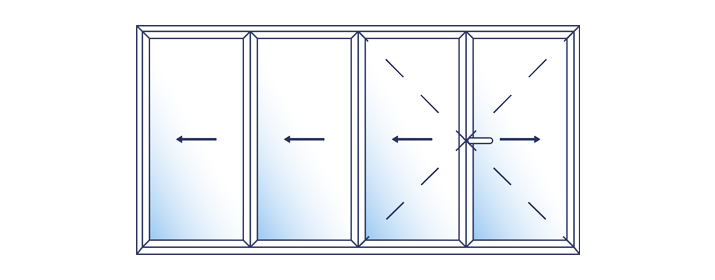

4 panels, 3 left and 1 right (reversible). With traffic door. Max width 4 800 mm.

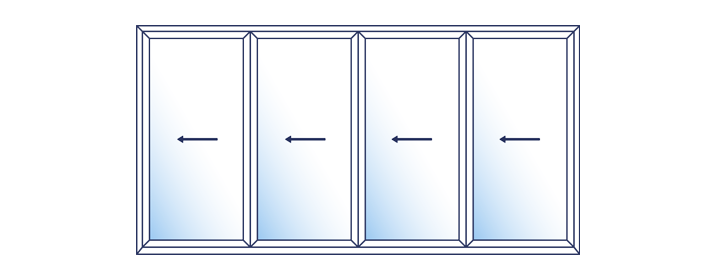

4 panels, 4 left (reversible). Without traffic door. Max width 4 800 mm.

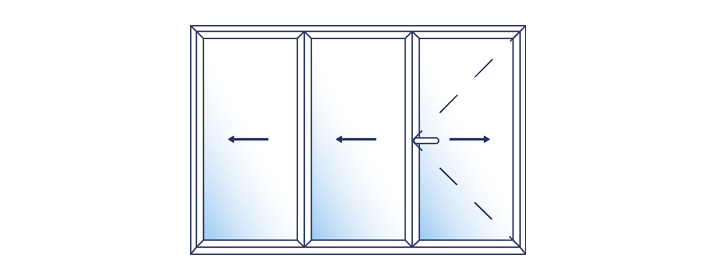

3 panels, 2 left and 1 right (reversible). With traffic door. Max width 3 600 mm.

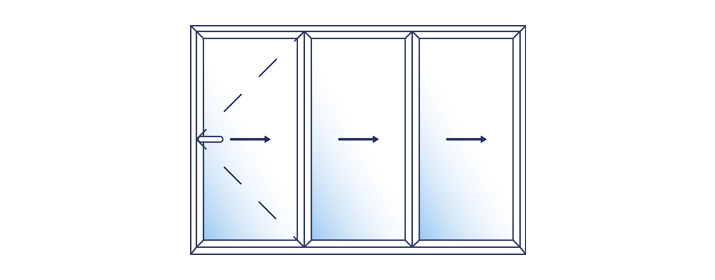

3 panels, 3 right (reversible). With traffic door. Max width 3 600 mm.

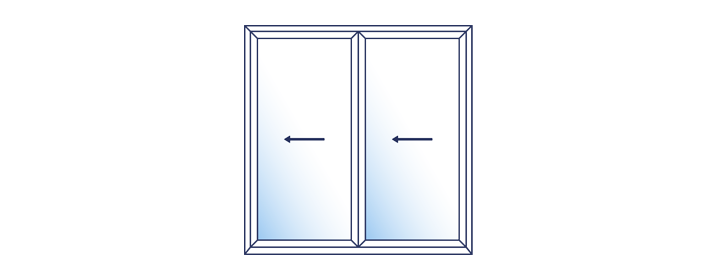

2 panels, 2 left (reversible). Without traffic door. Max width 2 400 mm.

Glazing Options

Glass is one of the most important building elements we have. Architectural glass contributes to efficient energy control while also meeting requirements for, among other things, noise reduction, burglar protection, and self-cleaning. We help you make the right choice.

Low emission glass (standard)
Safety and security glass
Solar control glass
Acoustic glass
Coloured glass

Handles

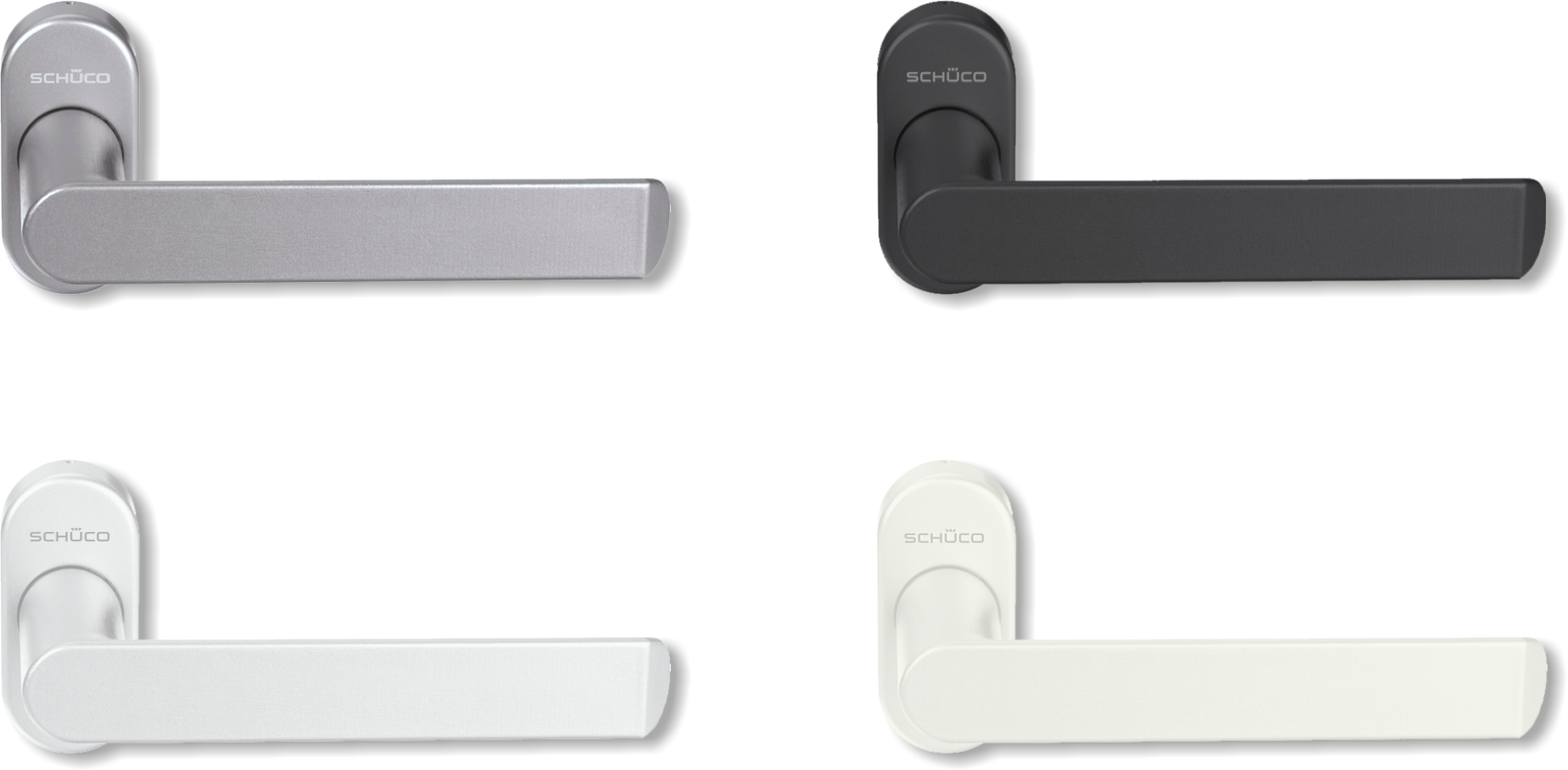

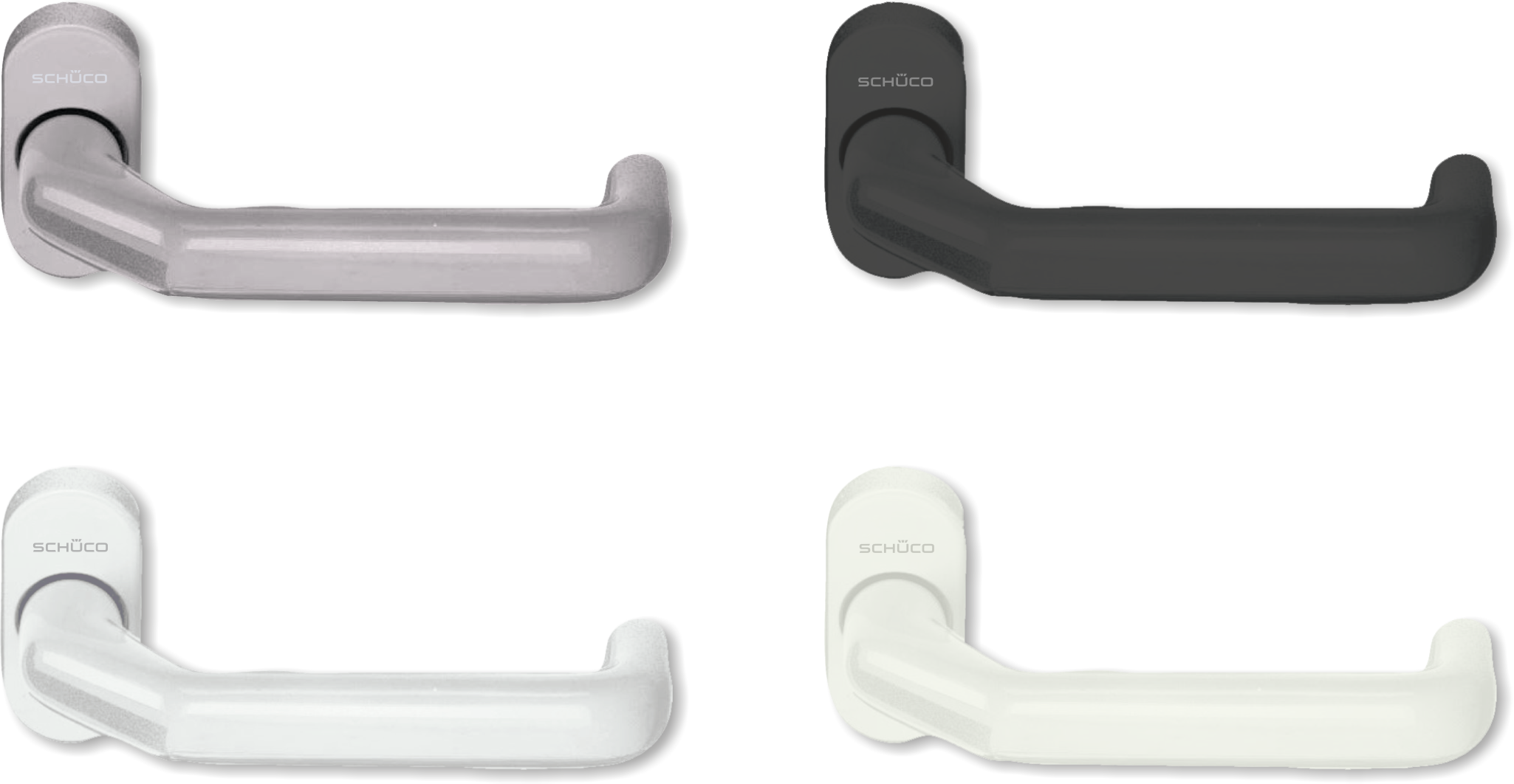

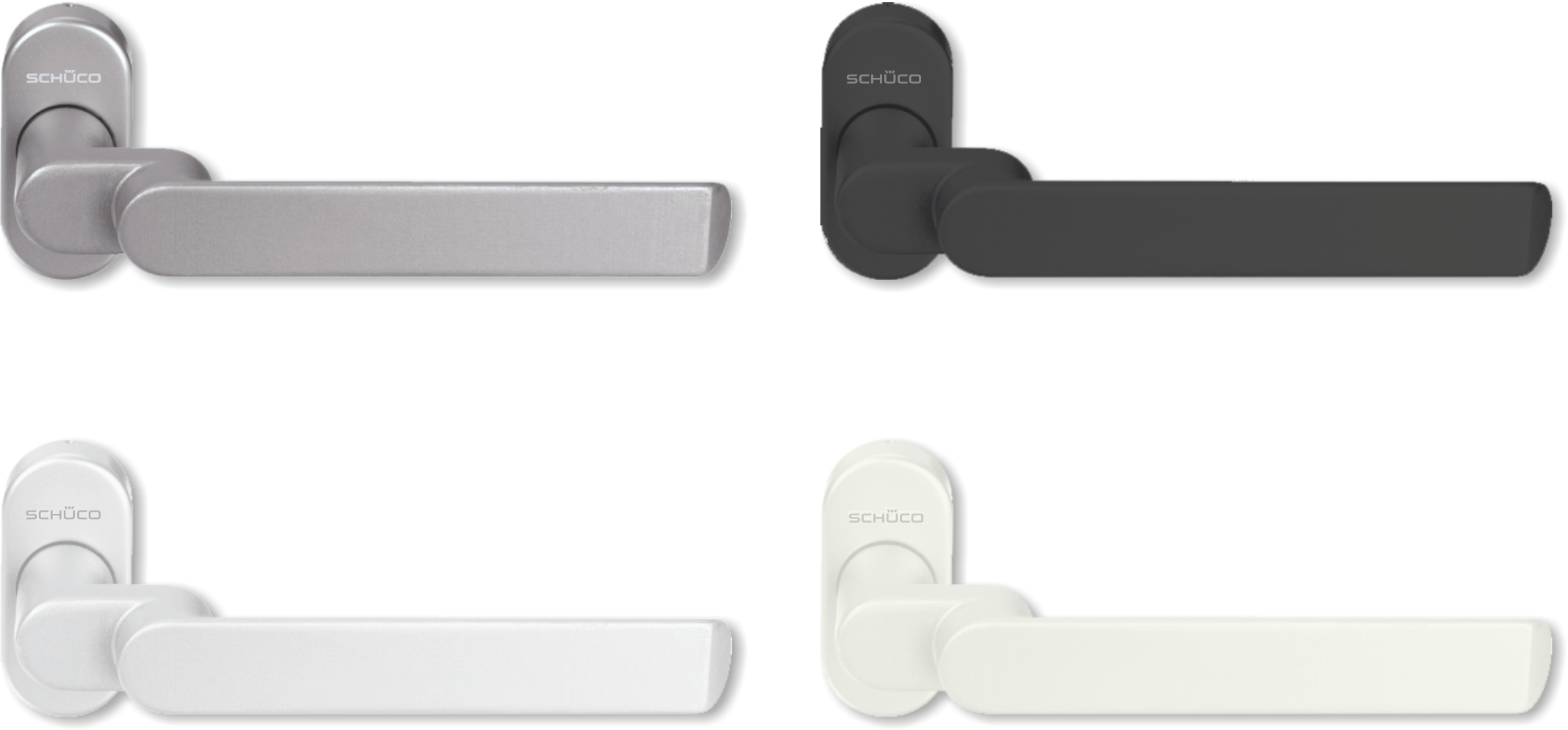

The folding doors come with a range of aluminium handles to choose from. They are available in C0 (silver anodised), RAL 9005, RAL 9010 and RAL 9016.

Colours

We offer a wide range of surface treatments, including RAL colours, anodised colours and surfaces with structure. With aluminium folding doors, you also have the opportunity to choose different colours outside and inside.

RAL (glossy or matte)

Anodising

Brochures

Bi-Folding Doors
