Timber Lift-Slide Doors
- Lift and slide doors are the perfect solution for terraces, balconies, patios and conservatories.
- Produced from laminated finger jointed pine for excellent stability and durability.
- A multitude of design options: dual colours, opening configurations, fittings and bars.
- Manufactured to survive the harsh Norwegian climate.
- High-quality fittings for smooth and easy operation.
- Bespoke manufactured to individual customer requirements.
Specifications
The Classic 66 profile has a slim and elegant design. Passive 76 is perfect for Passive Houses.
Classic 66
Height
1390 - 2490 mm
Width
1190 - 7990 mm
Thermal insulation
Uw ≥ 1,20 W/(m²K)
Resistance to wind load
C5
Watertightness
600 Pa
Burglar resistance
PAS 24
Glass thickness
26 - 36 mm
Threshold
Hardwood 55 mm, Low level for wheelchair access 25 mm
Passive 76
Height
1390 - 2790 mm
Width
1220 - 9990 mm
Thermal insulation
Uw ≥ 0,8 W/(m²K)
Resistance to wind load
C5
Watertightness
600 Pa
Burglar resistance
PAS 24
Glass thickness
36 - 46 mm
Threshold
Hardwood 55 mm, Low level for wheelchair access 25 mm
Opening Configurations

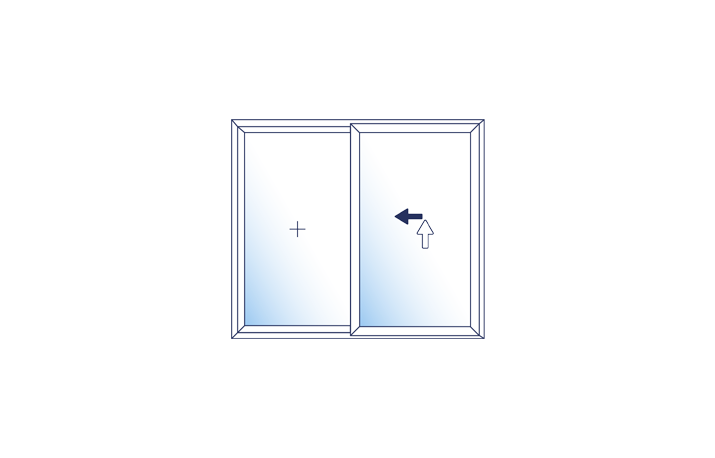

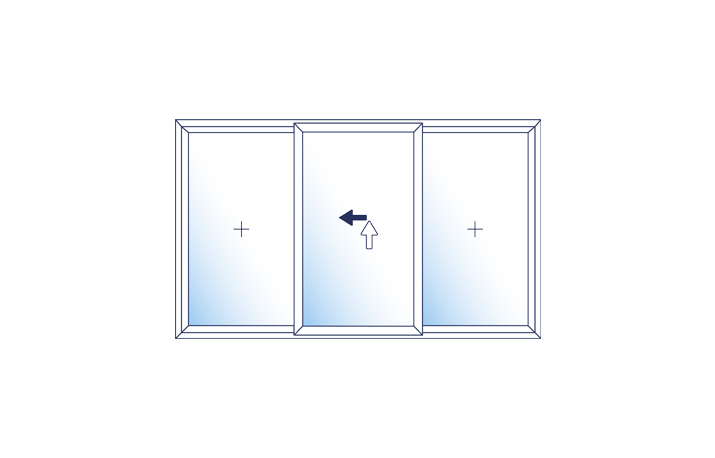

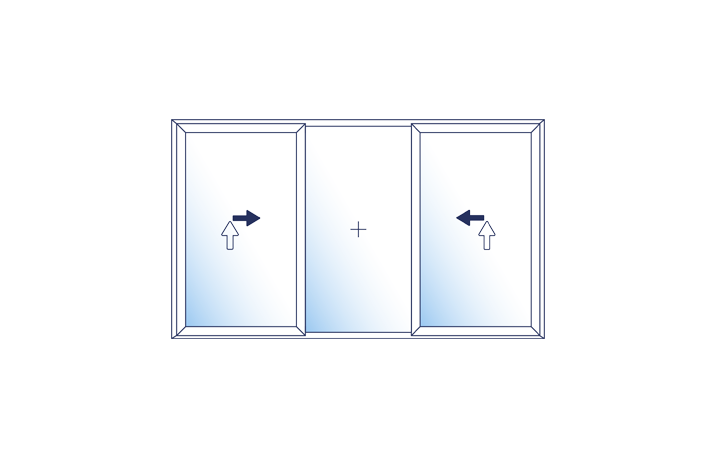

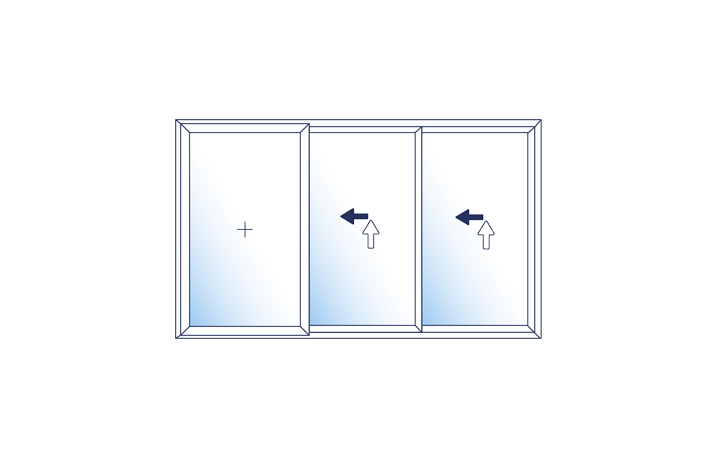

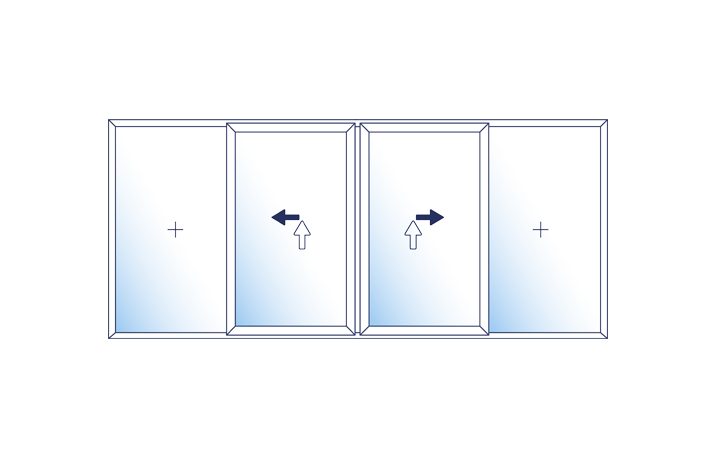

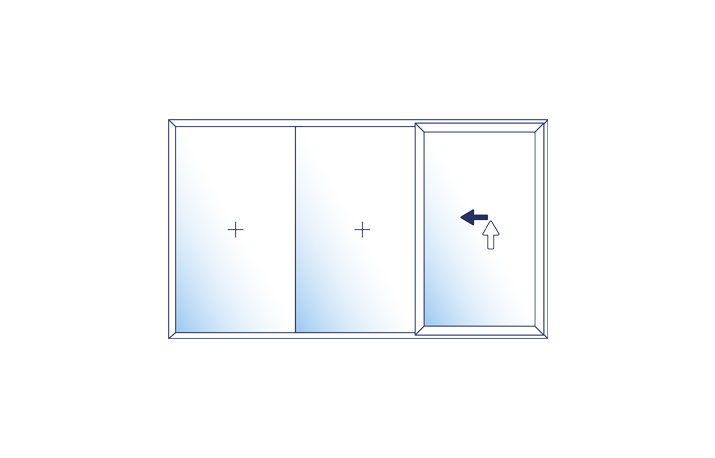

Multiple opening configurations with two, three or four panels and widths up to 10 meters.
Glazing Options
- Low emission glass (standard)
- Safety and security glass
- Solar control glass
- Self-cleaning glass
- Acoustic glass
- Decorative glass
- Coloured glass
Handles
Colours
Our timber sliding patio doors can be supplied in a wide range of NCS and RAL colours or lacquer. You can also select different colours for the interior and exterior of your sliding door.
RAL / NCS
LACQUER
