Sky Panorama

Sky Panorama Sliding Doors

Sky Panorama is not just a regular sliding patio door. Its unique and innovative design minimises visible profiles and enlarges your living space. Manufactured in widths up to 10 meters, Sky Panorama creates space for brighter and more beautiful living. Aluminium cladding option for excellent weather protection and durability.

Greater views due to narrower profiles and frameless fixed glazing.

Barrier-free threshold with high stability and aluminium reinforcement.

Effortless opening and closing of heavy door leaves weighing up to 300 kg with lift and slide bogie wheels.

Can be combined with soft close for improved safety and elegance. The damper gently pulls the sash into its locking position.

Get a price

Underhållsbehandlat träskjutparti i lyxklass med isolerglas för vinterträdgård

Träskjutdörr med isolerglas och tät konstruktion anpassad för vinteruterum i premiumklass

Premium uterumspartier i ädelträ med låg U-värde och klassisk hantverksfinish

Handgjort skjutparti i massivt trä och aluminiumkomposit för exklusiva uterum och fasader

Skjutparti i trä med trippelglas för energieffektiv vinterträdgård i högsta kvalitet 6. designat-skjutparti-vinter.jpg

Exklusivt träskjutparti i ädelträ med isolerglas för vinterbonat uterum med lyxig design

Lyxigt skjutparti i massivt trä med 3-glas isolering för åretruntanvändning i vinterträdgård

Skräddarsytt och designat skjutparti i trä med isolerglas, anpassat för vinterbruk och lyxig arkitektur

Specifications

Our Sky Panorama sliding doors and fixed frame windows are manufactured using the slim and innovative Sky 78 profile. Sky Panorama is available with aluminium cladding for improved weather protection and reduced need for maintenance.

Sky 78

Width

1,300 – 9,990 mm

Height

1,000 - 2,790 mm

Thermal insulation

Uw ≥ 0.91 W/(m²K)

Air permeability

class 4 in accordance with EN 12207

Watertightness

8A in accordance with EN 12208

Glass thickness

Wood - 46 mm, Alu clad - 48 mm

Threshold

Barrier-free access. High threshold stability with aluminium reinforcement.

Frame depth

Timber: 207 mm, Timber with alu cladding: 224 mm

Opening Configurations

Watch our Sky Panorama video for a summary of the features. The doors can be manufactured in heights up to 2.8 meters and widths up to 10 meters.

3-leaf sliding door with two sliding vents. Max. width 7,990 mm

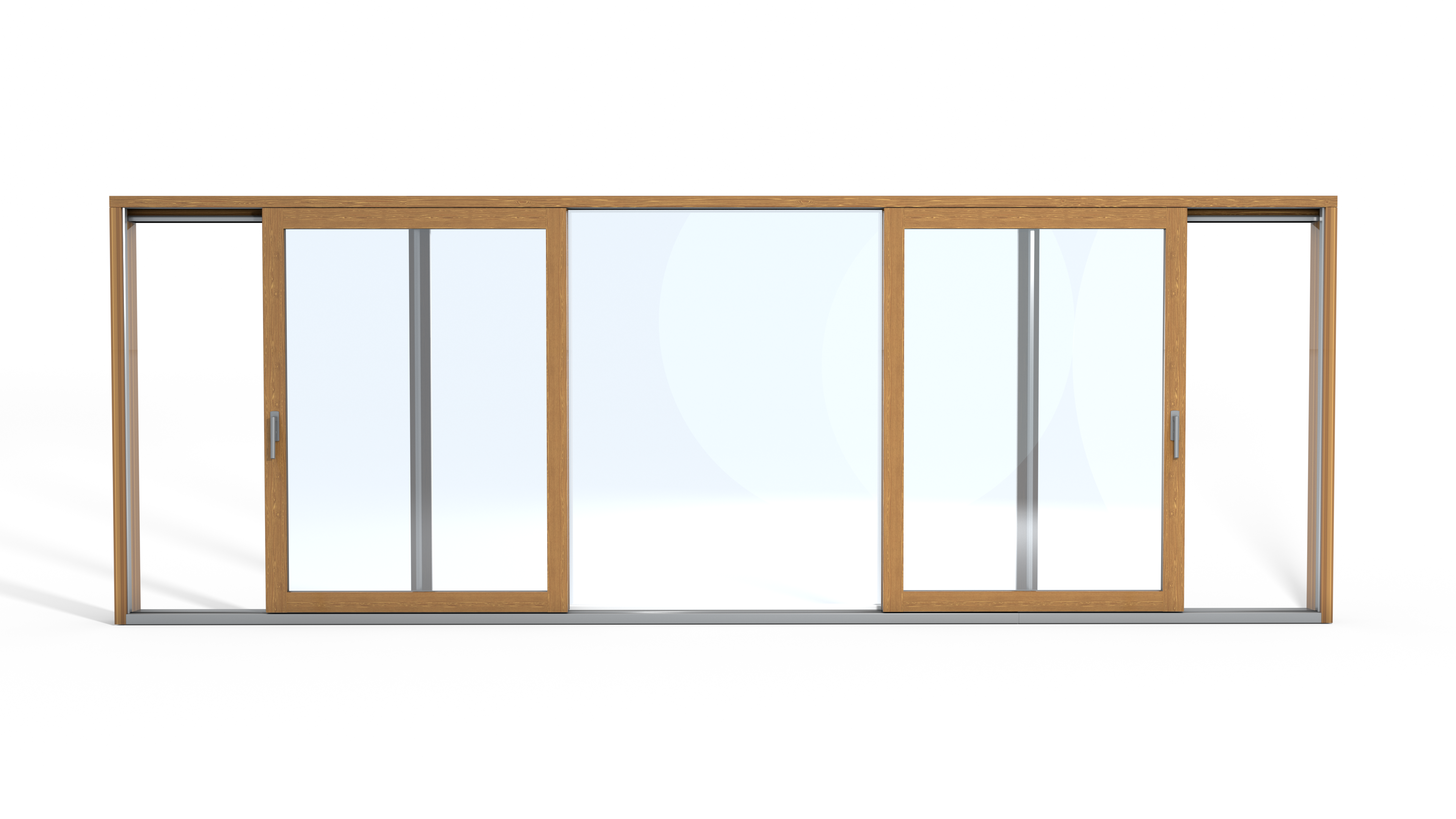

4-leaf sliding door with two sliding vents. Max. width 9,990 mm

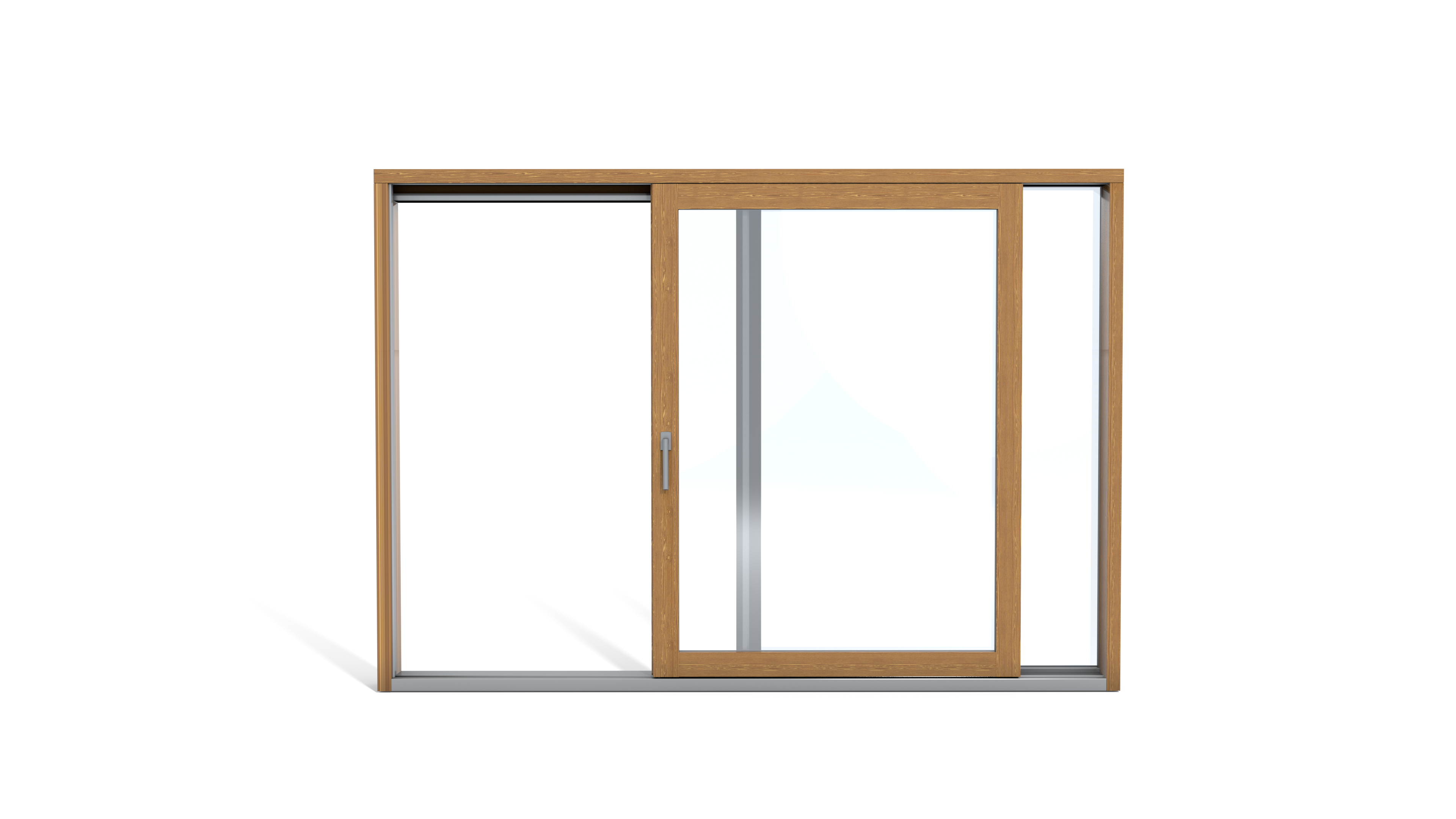

2-leaf sliding door. Max. width 5,990 mm

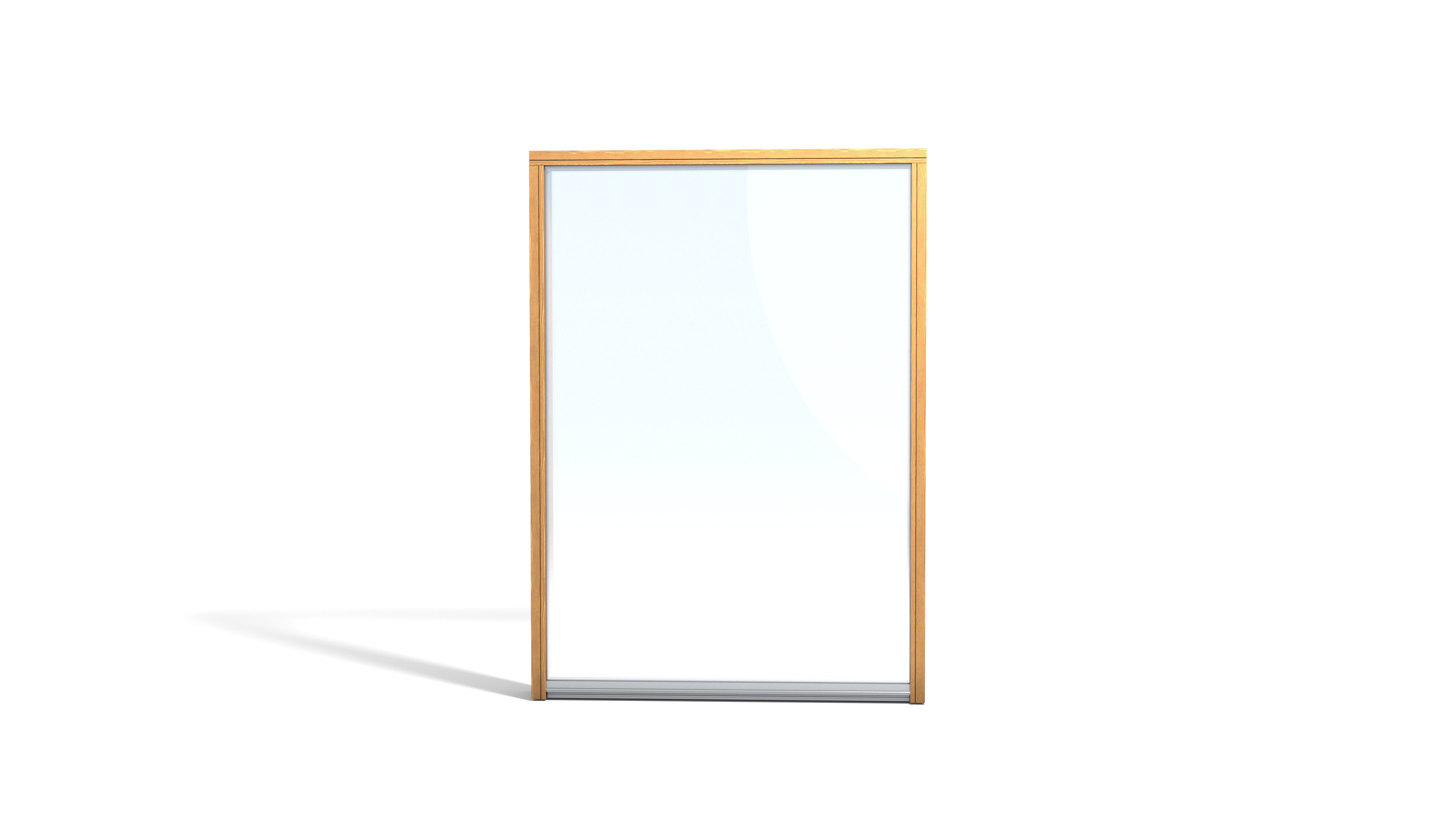

Fixed frame windows (same construction as sliding patio doors). Max. width 2,490 mm

Glazing Options

Glass is a crucial part of the door. Acoustic glass considerably reduces urban noises and solar control glass helps to prevent overheating. You can even add a coloured tint to the glass in blue, green, or brown.

Low-emission glass (standard)
Safety and security glass
Solar control glass
Acoustic glass
Coloured glass

Handles

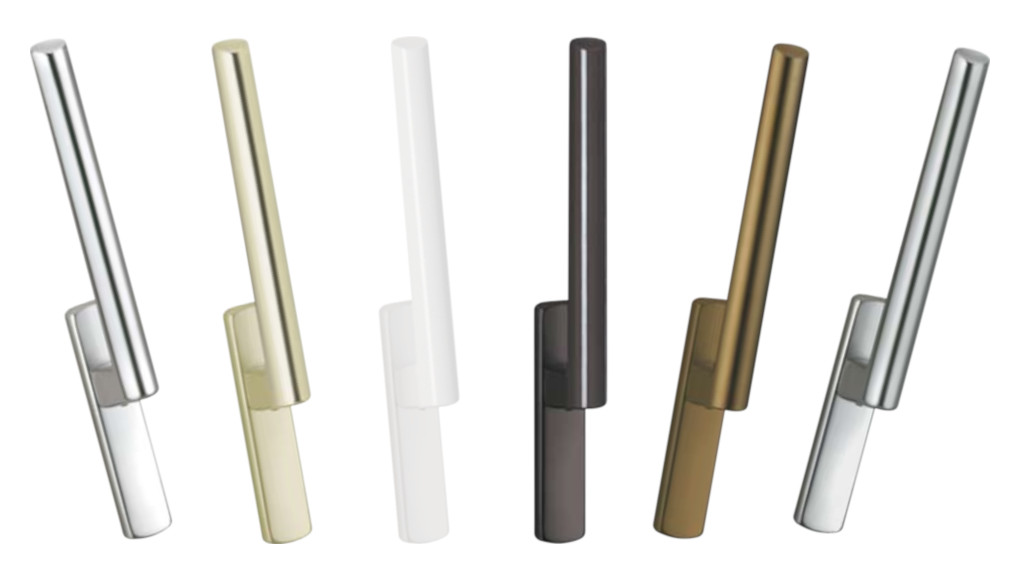

Add a personal touch to the sliding doors with these aesthetically pleasing design handles available in six colours.

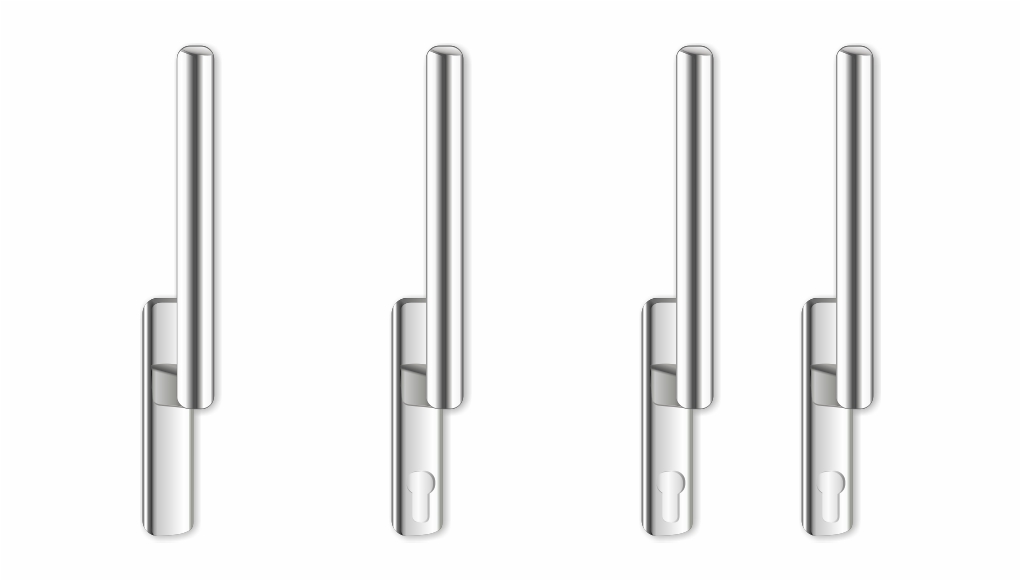

Standard fitting: Handle with cylinder on the inside and finger pull grip on the outside.
Optional fittings: Handle without cylinder on the inside and finger pull grip on the outside / Handle with cylinder on both sides.

Sky 78 Sliding Doors & Fixed Windows handles

Colours

Every sliding patio door is painted in our factory using environmentally friendly water-based paint or stain. The aluminium cladding is powder coated for a perfect finish.

With single or dual colour options, you can create an individual design that perfectly matches the interior and exterior of the property. Choose from any RAL colour and NCS colour, and a multitude of stains and anodised surface finishes.

RAL / NCS colours
